Special device from Easy Test

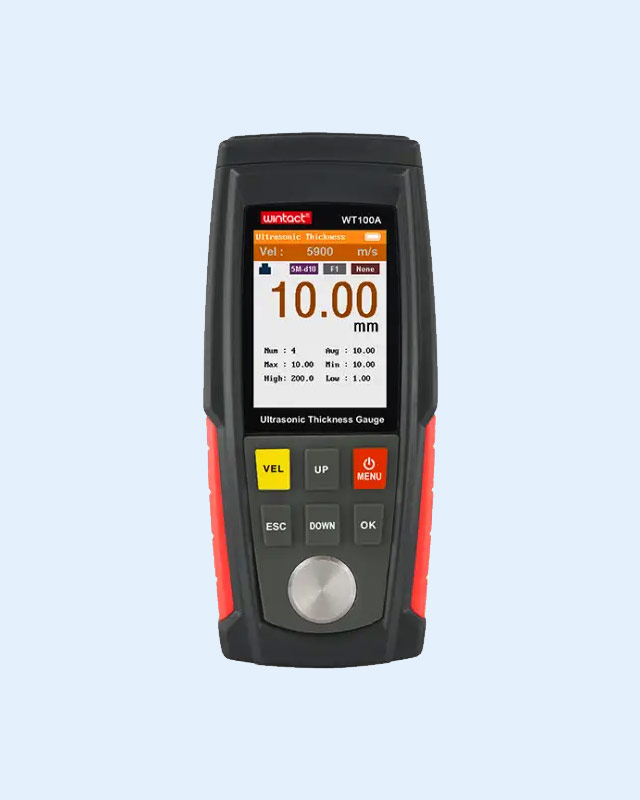

Ultrasonic Thickness Gauge possesses the following features:
1..Menu operation
2.Color screen HD display
3.Storage function
4.Screen brightness selection
5.Automatic shutdown selection function
| Measuring range | 1.00～225.0mm |
| Data storage | 500 |
| Probe selection | × |
Operation frequency | 5MHz |
| Measurement error | ±(0.5%H+0.05)mm |
| Resolution | 0.01mm(1.00 to 99.99mm) 0.1mm(100 to 225mm) |
Lower limit of pipe measurement | Φ20x3mm (steel) |
Adjustment range of sound speed | 1000～9999m/s |
Temperature range of operation | 0～40℃ |
| Battery | 3 Ni-MH rechargeable batteries of 1.2V |
| USB charging | 5V 1A |
| Dimensions | 65x146x30mm |
| Weight | 130G |
| Probe | Measurement parameters |
| 5Md10 | 1.0～225.0mm |
| 5Md6 | × |
| 2.5M | × |
| High temperature | × |
| Manufacturer | .... |
|---|---|
| Dimensions | .. × .. cm |
| Weight | 00gm |
