Detailed Information
Place of Origin:
Chinese
Certification:
CE,ROHS
Documents:
Catalog of Moisture Meter G...03.pdf
Material:
Plastic & Board
Measurement Range:
6.0%~65% (Wood), 0%~15.2% (Building Material)
Resolution:
0.10%
Accuracy:
± 2% (Range 1)
Size:
88*43*18.81mm
Weight:
44.8G
Packaging Details:
Blister Packaging+Color Card
Ability to produce:
More than 500 pcs per month
Highlights:
Moisture Meter with Backlit Display
,
4 groups of wood moisture analyzers
,
Building Materials Moisture Meter
Product Description
Moisture Meter Model: GM603 Moisture Meter AssemblyApplications

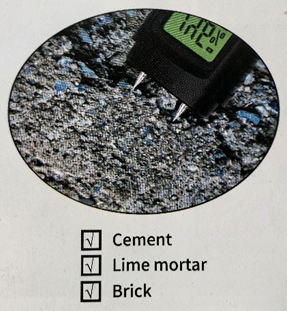

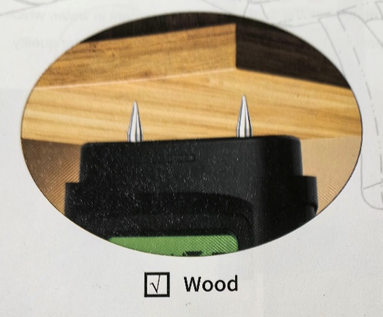

This DC resistance-type (pin-type) wood moisture tester features selectable measurement groups for 4 types of wood and 3 types of building materials. Chinese medical herbs
Description
Technical Volume
| Kinds | Equipment | Measurement Distance | Fixes |
|---|---|---|---|
| Wood | 1 | 60.0-39% | 0.10% |
| 2 | 70.0-48% | ||
| 3 | 8.5%-55% | ||
| 4 | 95%-65% | ||
| Building materials | 5 | 0% to 7.9% | |
| 6 | 0% - 8.5% | ||
| 7 | 0% ~ 15.2% | ||
| Wood Moisture Accuracy | ± 2% (Phase 1) | ||
| Area Temperature Range | 0 °C-40 °C | ||
| Temperature Measurement Distance | 0 °C ~ 50 °C | ||
| Internal humidity phase | 20%RH ~ 90%RH | ||
| Auto Shut-Off Time | Approx. 5 minutes | ||
| Sond length | 9.8 mm | ||
| Battery | 4 x LR44 1.5V batteries | ||
| Size | 88x43x18.81 mm | ||
| Probe Length (Optional) | 6.8 mm/9.8 mm | ||
| Weight | 44.8 g | ||
Package Contents
* Batteries are exempt from international shipments.
| Manufacturer | Elmetron |
|---|---|
| Dimensions | .. × .. cm |
| Weight | 00gm |
