6310IN Insulation Tester Digital HV 10 kV 6310IN

Brand: Lutron
Out of Stock

Special device from Easy Test

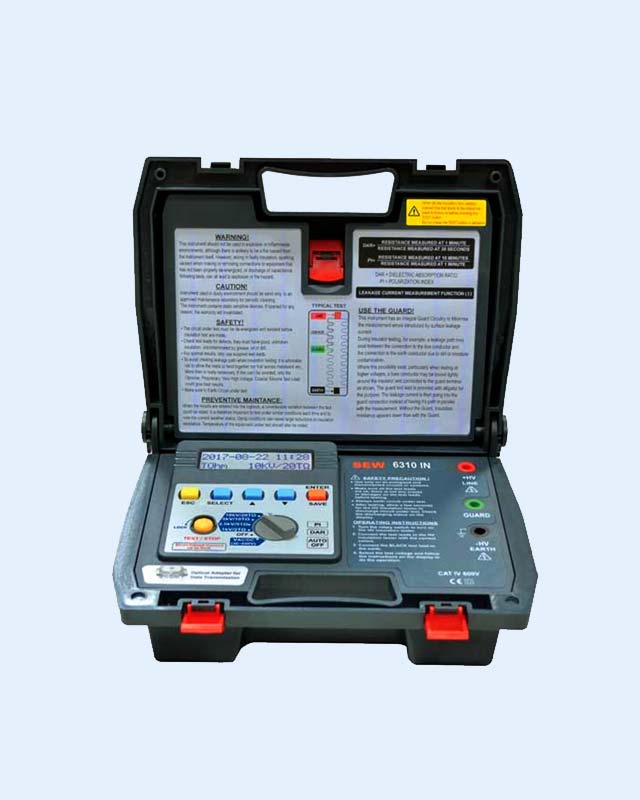

Insulation Tester Digital HV 10 kV 6310IN

2 Lines × 16 Characters LCD.
Microprocessor-controlled.
Tests insulation resistance up to 20 TΩ.
4 Insulation test voltages: 1000V, 2500V, 5000V, 10000V.
AC / DC Voltmeter (30~600V).
Short-circuit current up to 5mA.
PI (Polarization Index) indication.
DAR (Dielectric Absorption Ratio) indication.
Auto-ranging on all insulation ranges.
Optical USB to RS-232 data transmission.
Well isolated from contact.
Well protected from surges.
2 built-in optical LEDs for data transfer.
Visual and audio warning of external voltage presence (≥30Vac or ≥30Vdc).
Auto-hold function to freeze reading.
Overload protection.
Adjustable testing duration: 1~30 minutes.
Internal memory for data storage.
Displays testing duration for insulation measurement.
Auto-off function.
200 measurement results can be saved in memory and recalled on.

Accessories
Instruction manual,
Test leads,
Data transmission cable CA-232,
Compact disk (CD) for PC interface,
Alligator clips,
Batteries,
Test report.

Test voltage (DC V)Insulation resistanceAccuracy ±(5%rdg+5dgt)Accuracy ±20%rdgResolution
1000V2TΩ / 1000V0~200GΩ / 1000V200G~2TΩ / 1000V1000MΩ: 1MΩ
2500V5TΩ / 2500V0~500GΩ / 2500V500G~5TΩ / 2500V10GΩ: 0.01GΩ
5000V10TΩ / 5000V0~1000GΩ / 5000V1000G~10TΩ / 5000V100GΩ: 0.1GΩ
10000V20TΩ / 10000V0~2000GΩ / 10000V2000G~20TΩ / 10000V1TΩ: 1GΩ
    10TΩ: 10GΩ
    20TΩ: 100GΩ

Short circuit current: up to 5mA
Current measurement: 0.5nA ~ 0.55mA (Depending on the insulation resistance)
PI (Polarization Index)
DAR (Dielectric Absorption Ratio)

Voltmeter
ACV: 30~600V(50/60Hz)
DCV: 30~600V
Accuracy: ±(2.0%rdg + 3dgt)
Resolution: 1V

General
Dimensions: 330(L) × 260(W) × 160(D)mm
Weight (battery included): Approx. 4724g
Power source: 1.5V "C" × 8 Alkaline batteries
Safety standard: EN 61010-1 CAT IV 600V, EN 61010-2-030, EN 61326-1
Accessories: Instruction manual, Test leads, Data transmission cable CA-232, Compact disk (CD) for PC interface, Alligator clips, Batteries, Test report.
